Introduction

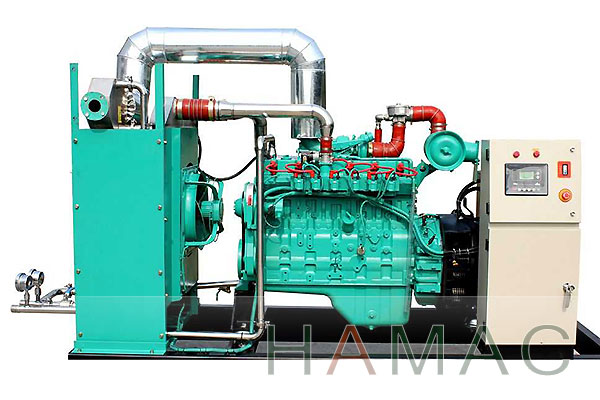

CHP means combined with heat and power. It is designed to recycle the waste heat to be used for warm or cooling, so it makes the natural gas to be used at a high efficiency. It is really the best way to use the natural gas reasonably. CHP system use the high quality energy source to generate electricity, and the low quality energy source like afterheat brought by exhaust gas and hot water can be used to make warm and cooling. So the energy source is being used at a high operating factor. It will make your cost lower. Hamac’s gas generator with CHP system is a good choice for you to make you cost lower.

Specification

Genset Models	Gas Engine Models	Electrical Power	Thermal Power	Electrical efficiency	Thermal efficiency	Overall efficiency	Net Weight	Dimensions (LWH)	Download
		Kw	Kw	%	%	%	Kg	mm
CHP12VB	465Q	12	20	35	50	85	630	1600x650x1250
CHP20VB	4B3.9	20	52	35	50	85	850	1700×740×1350
CHP25VB	4B3.9	25	66	35	50	85	850	1800×760×1375
CHP30VB	4B3.9	30	79	35	50	85	850	1800x790x1375
CHP40VB	6B5.9	40	105	35.5	50	85.5	900	2100x800x1375
CHP50VB	6B5.9	50	132	35.5	50	85.5	900	2100x800x1375
CHP75VB	6B5.9	75	197	35.5	50	85.5	1120	2100×800×1375
CHP85VB	6B5.9	85	224	35.5	50	85.5	1120	2200×800×1375
CHP95VB	6CT8.3	95	250	36	51	87	1350	2440×945×1490
CHP110VB	6CT8.3	110	289	36	51	87	1350	2440×945×1490
CHP135VB	6LTAA8.9	135	355	37	51	88	1800	2550×970×1500
CHP150VB	6LTAA8.9	150	395	37	51	88	1800	2550×970×1500
CHP170VB	6LTAA8.9	170	447	37	51	88	1800	2550×970×1500
CHP200VB	NT855	200	526	37.5	51.5	89	2850	3000×1150×1780
CHP220VB	NT855	220	579	37.5	51.5	89	2950	3000×1150×1780
CHP250VB	NT855	250	658	37.5	51.5	89	3015	3100×1250×1780
CHP280VB	KT19	280	737	38	51.5	89.5	3450	3440×1550×2200
CHP300VB	KT19	300	789	38	51.5	89.5	4250	3440×1550×2200
CHP320VB	KT19	320	842	38	51.5	89.5	4350	3500×1600×2300
CHP350VB	KT19	350	921	38	51.5	89.5	4500	3690×1680×2300
CHP400VB	KT38	400	1053	39	52	91	5200	3800×1700×2300
>CHP450VB	KT38	450	1184	39	52	91	7800	4300×2300X2500
CHP500VB	KT38	500	1316	39	52	91	9500	4500×2300X2500

Note: All technical parameter are subject to change without notice.
